P106-100 mining card used for Machine Learning

Recently lots of cheap mining specific cards are overflooding the second hand market, such as the p106-100. Can it be effective for machine learning?

Conclusion for those in a hurry

Bang for the buck this is one of the best cards available if your VRAM usage is under 6GB and PCIE bandwidth usage is reasonable. It has similar performance to a GTX 1060 for standard benchmarks at one third of the price on the second hand market

Performance tests results

Test	P106-100	GTX1060 (the 5GB variant)
Cifar10 peak	~8000 examples/sec	~7000 examples/sec
Alexnet forward	0.083s/batch	0.103s/batch
Alexnet backward	0.193s/batch	0.243s/batch
PPO2 Atari Pong	~1110 frame/sec	~1000 frames/sec
Host to Device	3094.4 MB/s	11205.9 MB/s
Device to Host	3207.3 MB/s	12788.0 MB/s
Device to Device	152542.9 MB/s	115346.1 MB/s

UPDATE:

I recently made two videos about how to leverage mining hardware using NVIDIA Reasearch’s CuLE framework (for Atari games) and one on Isaac gym for RL in Robotics tested on a p106-100 amongst other cards:

Software

• Ubuntu 18.04
• Tensorflow 1.12
• CUDA 9.0
• CUDNN 7.31
• NVIDIA driver 390.77

Hardware

• Zotac P106-100
• 2x E5 2676 v3 ES (30MB cache, 12C/24T)
• 16 GB DDR4 2133Mhz
• Dell T7810 dual socket motherboard

Note: I did not have a GTX 1060 6GB to compare against (only the 5 GB variant). Please keep in mind that the 5GB variant has a difference in memory bandwidth capacity: 168GB/s (5 GB card) as opposed to 192GB/s (6 GB card) and since these ML benchmarks are bandwidth bound it affects the performance.

Read on for the details…

Recently mining crypto-currencies has become less profitable and as a result lots of miners are dumping their GPUs on the second hand market and this is driving the prices down. Moreover lots of those gpu have no head display and are firmware and/or driver locked so they cannot be used by most games out of the box driving the price down further.

The p106-100 is originally intended for mining crypto-currencies here are the specs

As you may have noticed it is base on the gp106 pascal architecture gpu, same as for the GTX 1060 in all it’s variant (3GB, 5GB, 6GB)

The Differences

Supports PCIE 1.1 16x as opposed to PCIE 3.0 16x for the 1060 6GB p106 driver does not support directX in order to prevent most games from using it easily Althought some hacks exists

One critically overlooked component for performance is the PCIE bandwidth The p106-100 is locked at pcie 1.1 so max bandwith is at 4GB/s as opposed to 16GB/s This can have a significant impact depending on you usage but typically you can expect around 15% hit on performance. However on alexnet test the impact is minimal since very little transfers are made during the tests Moreover if you use the card in a PCIE 8x slot for example you will have a maximum bandwidth of 2 GB/s and you might experience another 15% hit depending on usage. Lots of motherboards support only one full speed pcie 16x slot at a time. When two slots are used speed is down to 8x so if you are using the p106 as a second card you want to check your motherboard specs. Moreoever if bandwith performance is critical for your use case, p106 might not be the best choice. That said even with a 15% hit on performance it’s still offers a very good price/performance ratio.

This is the card I am using ML to play video games such as these ones:

Game	Videos/Models
Super Street Fighter 2 CE Genesis	youtube
Fatal Fury 2 Genesis	youtube
Ms PacMan Nes	youtube
Clu Clu Land Nes	youtube
Columns Genesis	youtube
PopEye Nes	youtube
Bubble Bobble Nes	youtube
T2 Arcade Genesis	youtube
After Burner II	youtube
Adventure Island 3	youtube
Mortal Kombat II Genesis	youtube
Punchout Nes	youtube

Performance test details

Here are screenshots of various tests I made

python3 ./cifar10_train.py

./1_Utilities/bandwidthTest/bandwidthTest

python3 -m baselines.run --alg=ppo2 --env=PongNoFrameskip-v4 --num_timesteps=2e7

Temperatures

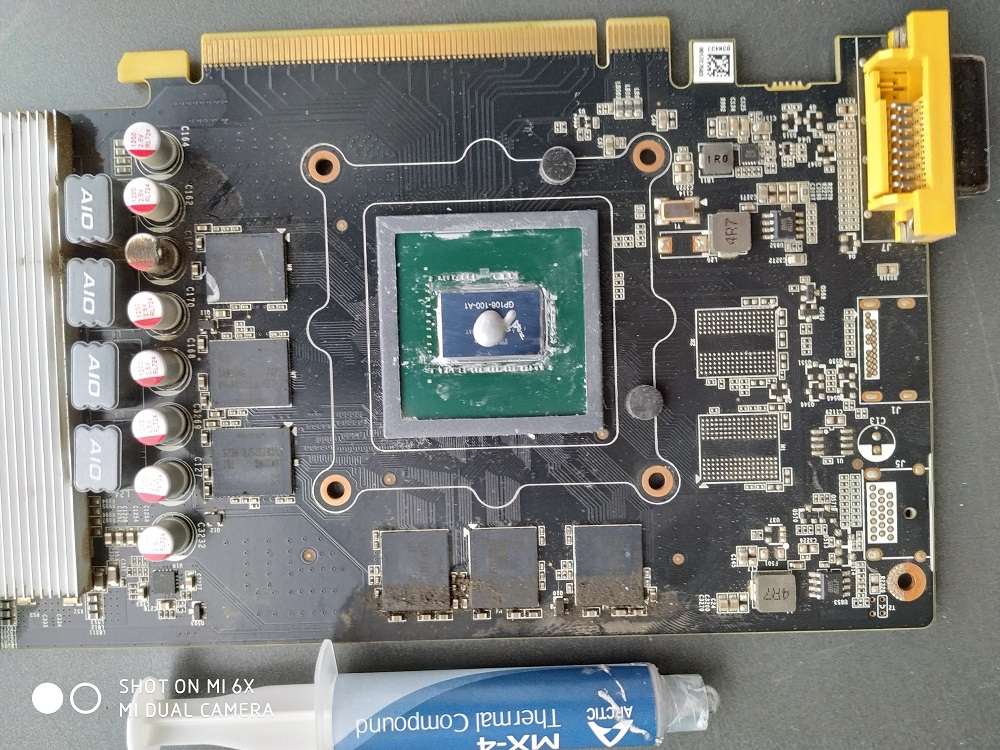

I re-applied some thermal paste on the card and temperatures are stable even under load. Artic Cat MX-4 thermal paste does the job

nvidia-smi
