Huananzhi x99-T8D motherboard review

EDIT 2025: I installed Proxmox VE 8.3.0 with Ubuntu 20.04.5 and TrueNAS Scale 24.10.2 VMs both using GPU passthrough. It’s stable and performance is close to native.

For GPU passthrough I used these steps: https://www.videogames.ai/2023/08/20/Proxmox-gpu-passthrough.html

Motherboard specs

• Intel® X99, 2 x LGA2011-3
• RAM: 8 x DIMM, Max. 8 x 32GB, DDR3 1866/1600/1333 MHz ECC and non-ECC, quad channel
• Audio: Realtek® ALC887 7.1-Channel, High Definition Audio CODEC
• LAN: Realtek® RTL8111H, 2 x 10/100/1000 Mbit/s LAN Controller(s)
• Slots: 3 x PCIe 3.0 x16

storage:

• 10 x SATA 3.0 port(s)
• 1 x M.2 Socket 3, NVMe
• 1 x M.2 Socket 2, SATA

Additional specs:

Full specs used for this review

• Huananzhi x99-T8D motherboard
• 2x Intel Xeon e5-2666v3 (10c/20t) 25MB cache
• 4 x 16GB Samsung ECC DDR3 1600Mhz overlocked @ 1866Mhz
• Intel 660p nvme SSD - 512GB
• Seagate Barracuda 4TB - ST4000DM004-2CV104
• 2x Snowman cooler
• MaxSun RTX 2060 Super 8GB
• DEEP COOL MATREXX 55 MESH Computer Case, E-ATX
• 3x ARCTIC F12 PWM PST - 120 mm
• Corsaire RM850x PSU - 850w

OS:

• Ubuntu 18.04 64 bit
• Windows 10 64 bit

Bullet points for those in a hurry

Pros:

• Supports the best bang for buck CPUs such as the Intel Xeon E5 2666v3
• Supports DDR3 which is cheaper then DDR4 with praticaly no performance difference
• Supports Ubuntu, Windows 10 and 11 quite well
• Supports virtualization
• Turbo boost unlock works with this motherboard
• Reliable and runs at decent temperatures

Cons:

• Most fan plugs are only 3 pins so fans are running at 100% all the time
• 2 temperature sensors on the motherboard give bogus readings
• sleep mode unsupported
• The DDR3 variant (in this review) only supports a subset of the x99 processors but you can choose the DDR4 variant if that is a problem
• Not all motherboard holes align with the Deep Cool E-ATX case
• RAM slots are too close to the CPU heatsinks, making it hard to upgrade RAM easily
• No integrated graphics

Temperatures, fans and stability

Stress testing the two Intel Xeon E5 2666v3 CPUs at 100% results in a peak temperature of 61C for the CPUs and 59C for the motherboard. Idle mode, the motherboard sits at around 28C.

I bought this board when I was in Shanghai and traveled all the way back to Canada with it in my luggage so I was worried that it would break underway but have been using this board for a few weeks now with Ubuntu 18.04, running 24/7 and got zero crashes.

One of the reasons the temperatures are so cool is that that fans are running at 100% and the cause is that there is only one four pin fan plug which means most of the fans (3 pin plugs) are always running at 100%, so I would recommend getting quiet fans especially if you it as your workstation.

If you use OpenHardware monitor on windows you will see that there are additional sensors on the motherboard but they are not working and give bogus readings as with many Huananzhi boards, it shouldn’t cause any problems since for the most part the two working sensors should give enough indication on the overall temperature.

Note: I noticed when I bought the board is the bent reset button on the left, next to the power button. It still works well thought.

Dual CPU Performance

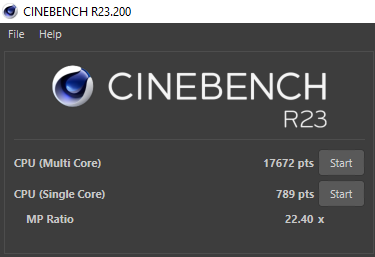

For now I only tried Cinebench and unreal engine as benchmarks

Unreal Engine 4.27 - ShooterGame sample - Highrise map full build:

• 1:41 min for the illumination with the dual 2666v3 config
• 2:03 min with the AMD Ryzen 7 6800HS (Asus Zephyrus g14 2022 laptop) as comparaison

For 40$ CAD each on aliexpress.com at the time of this writing the two 2666v3 provide probably the best bang for buck you can find that is 220 cnb23 points per dollar.

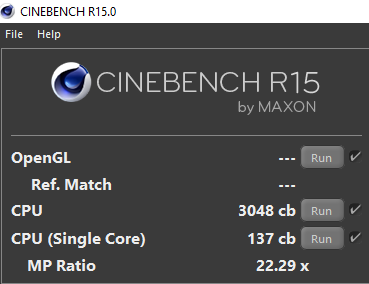

If you eventually need a bit more powerful CPUs you have room for upgrade. For example the dual 2696v3 (which supports DDR3 as well) scores 4281 on cinebench r15 and with turbo boost unlock hack it reportedly scores 4800! That said the current price of the 2696v3 is over 3 times the 2666v3 on aliexpress so price/performance ratio is less interesting.

As you may have noticed the x99 processors and most processors around that generation has lower single core performance the today’s processors as opposed to multi-core where they are still competitive. As such I would not recommend this board if your main goal with it is gaming, as most games needs strong single core performance to achieve high FPS.

I used Phoronix to test linux kernel compilation. It still performs better then the recent Intel i5-12600K at 5 times the price of two 2666v3!

Turbo boost Unlock hack

As for the famous turbo boost unlock hack for x99 processors which adds around 10-15% of cinebench multi-core score depending on the processor:

There is a GitHub project that has the files along with instructions on how to unlock turbo boost which involves replacing the bios https://github.com/markkpa/x99-t8d-and-x99-f8d-Opencore-Hackintosh

EDIT August 22, 2022: I tried the hack and I get 18945 on Cinebench r23 with the 1600Mhz RAM speed

I also get 62s in Linux compile benchmark

Bios

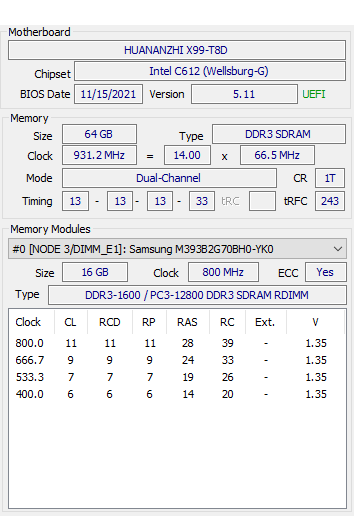

The only bios feature I used is to overclock the DDR3 memory modules from 1600Mhz to 1866Mhz without any issues.

PCIE Bandwidth

I get these results with CUDA-Z with my RTX 2060 Super:

• Host Pinned to Device: 11.2115 GiB/s
• Host Pageable to Device: 7230.83 MiB/s
• Device to Host Pinned: 12.1357 GiB/s
• Device to Host Pageable: 9951.26 MiB/s
• Device to Device: 160.996 GiB/s

These are the results for the first two PCIE slots, as for the third PCIE slot I haven’t tested it yet.

DDR3 vs DDR4 and Compatible processors

Please keep in mind that this is a DDR3 board and as such only a few x99 processors supports both DDR3 and DDR4, the majority only supports DDR4.

I tried the 2678v3 and the 2666v3 which support both type of RAM.

Here is the full list of DDR3 compatible processors from Huananzhi: E5-2629v3 / 2649v3 / 2669v3 / 2673v3 / 2676v3 / 2678v3 / 2696v3.

As you may have noticed the 2666v3 processor is not in the list but it does work, it’s what I am using currently, not sure why they havent included it.

Which should you choose between DDR3 and DDR4? DDR3 is cheaper if you need lots of RAM but if you already got some DDR4 modules lying around you should definetly choose the DDR4 varriant since it supports a wider range of x99 processors.

In my case I chose the DDR3 since I already one 2666v3 and a couple of DDR3 ram sticks back than.

EATX Case

For the case I use the DEEP COOL MATREXX 55 MESH, which has decent airflow and enough room to fit at least two dual slot GPUs, for the third slot there is only enough space for a single slot GPU.

The main issue I got is with the standoff, not all the holes on the x99-t8D motherboard aligns with the DEEP COOL case, so you would need to buy plastic standoffs to make up for the missing holes in the case.

Windows and Linux compatibility

I tried Windows 10 and Ubuntu 18.04 both supports the x99-T8D quite well although as with other Huananzhi boards the sleep mode apparently doesn’t work according to all other reviews on youtube but in my case I don’t use it since it’s a 100% up server.

As for Windows 11, x99 is not supported by it officially but you can bypass the artificial restriction easily if you want to use it. Again Myiconst has a good video on this topic.

I tried Windows 11 and is currently the Windows version I will use. I tested Unreal Engine 5.03 with it with the huge City Sample project and it handles it quite well

Virtualization

I run Ubuntu 18.04 with full GPU support on top of Windows 11 with WSL2 (which uses Hyper-V architecture). It works quite well, I can train AI models on videogames with roughly 90% of performance compared to running natively.

You can quickly setup WSL2: WSL2 setup Guide

Power Consumption

• 96W - Idle, Windows 10 booted with display on, no apps opened
• 377W - 100% usage for both CPUs with Cinebench r23

Disk speed

Using the disk utility of Ubuntu 18.04 with default settings

• Intel 660p - nvme m.2 slot: peek of 1.8GB/s read speed
• Seagate Barracuda 4TB HDD - SATA port: peek of 180 MB/s

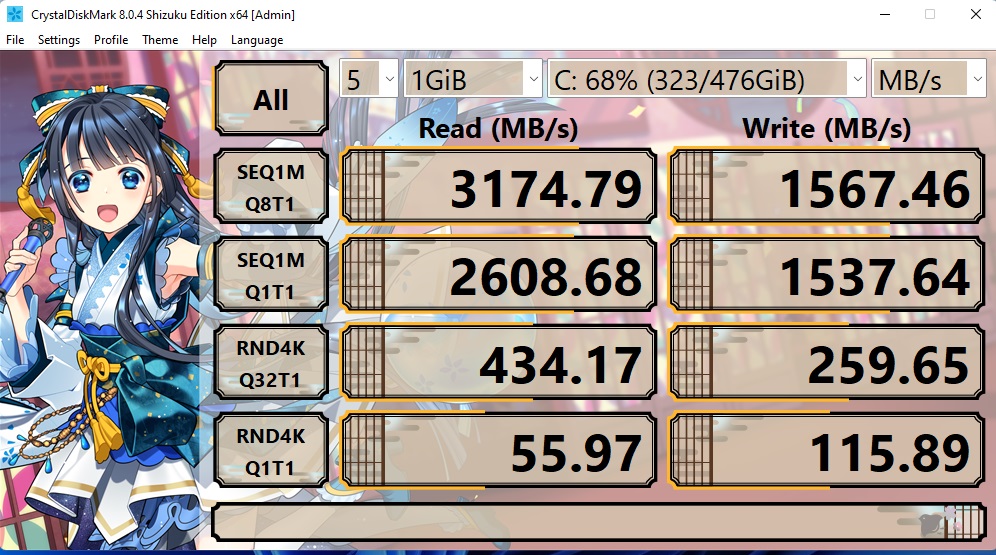

I tried the Intel 760p as well on nvme m.2 slot:

Conclusion

For home server or workstation needs, x99 motherboards are the best bang for the buck since you can use the very cheap but still powerful Intel E5 Xeon 2666v3 with DDR3 RAM with no performance penality compared to DDR4. Even for x99 boards and processors that supports only DDR4 (there is also a DDR4 variant of this board) the price/performance ratio is still very interesting. That’s why new x99 boards are still beeing produced, as in this case the x99-T8D by the Chinese company Huananzhi.

Speaking of huananzhi, they are not the cheapest boards, I bought mine in China on taobao so I paid 100$ CAD less then what you would get on aliexpress.com if you order from Canada. I would recommend waiting for a better deal on the x99-T8D or buying a cheaper brand for around 120$ to make sure to get the best bang for the buck which is the whole point of buying x99 hardware. Past a certain price it’s better to buy the new Intel Alder Lake based CPUs and compatible motherboards.
