RTX 2060 Super for Machine Learning
by Mathieu Poliquin
The RTX 2060 Super is the card I use currently and I think it’s the best bang for the buck for my use case and I think for most use cases provided your models fit inside 8GB and with the new 16bit precision mode offered in RTX cards you can almost double the memory available for you model with no precision related issues in most cases. Which makes it the best choice over the previous generation, for example the GTX 1080 8GB, which doesn’t have proper 16bit support
My specific model is a MaxSun iCraft RTX 2060 Super, the only complaint I have is the high temperatures. It reaches 80C quite quick under 100% load (38C under rest) even thought the airflow in the computer case is very good, but I think it’s related to the effectiveness of the gpu fans. When I set fan speed to 100% the temperatures are ok but quite noisy.
Performance tests results
Test | P106-100 |
---|---|
PPO2 Atari Pong | ~1670 frame/sec |
Resnet50 batch=32 | 181.88 images/sec |
Resnet50 batch=32 (16 bit) | 292.80 images/sec |
Resnet50 batch=64 (16 bit) | 324.83 images/sec |
Isaac gym/OpenAI - Shadowhand | 30952 steps/s |
Host to Device | 1122 MB/s |
Device to Host | 1218.3 MB/s |
Device to Device | 168540.0 MB/s |
Quake 2 RTX | 55 fps |
Software
- Windows 10
- Ubuntu 18.04
- Tensorflow 1.14
- Pytorch 1.8
- CUDA 10.0
- CUDNN 7.36
- NVIDIA driver 430
Hardware
- MaxSun iCraft RTX 2060 Super
- E5 2678 v3 ES (30MB cache, 12C/24T)
- 16 GB ECC DDR4 2133Mhz
- Dell T7810 dual socket motherboard (but only one CPU is used)
OpenAI baselines + retro
When training ML models on games the CPU is also heavily used for simulation so the GPU is not 100% utilized but used in spikes. That said you can still get a big performance boost using OpenAI’s baselines and Retro frameworks of about 500 fps with same CPU with their default CNN model
details of the setup here: https://www.videogames.ai/2019/01/29/Setup-OpenAI-baselines-retro.html
Isaac gym
I get Isaac 30952 steps/s on the ShadowHand example. I actually did a video of Isaac gym on the RTX 2060, you can see it here as well as a comparaison with the p106-100:
Quake 2 RTX
I get around 55 fps at the beginning of the first level (demo version).
Here are the options I used:

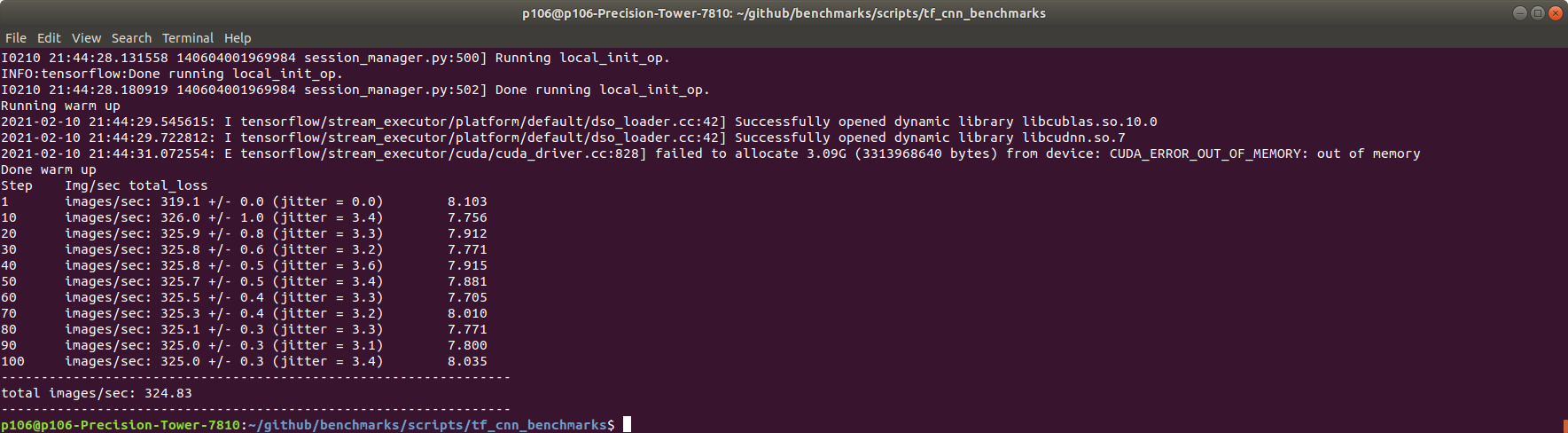

Resnet 50 test
For the resnet 50 test I use tensorflow’s benchmarks repo on github: https://github.com/tensorflow/benchmarks/tree/master/scripts/tf_cnn_benchmarks
I used tensorflow version 1.14
python3 tf_cnn_benchmarks.py --num_gpus=1 --batch_size=64 --model=resnet50 --use_fp16
CUDA-Z
Here is an export from the CUDA-Z app, the the bottom there is the performane metrics
CUDA-Z Report
=============
Version: 0.10.251 32 bit http://cuda-z.sf.net/
OS Version: Linux 5.4.0-120-generic #136~18.04.1-Ubuntu SMP Fri Jun 10 18:00:44 UTC 2022 x86_64
Driver Version: 515.48.07
Driver Dll Version: 11.70 (515.48.07)
Runtime Dll Version: 6.50
Core Information
----------------
Name: NVIDIA GeForce RTX 2060 SUPER
Compute Capability: 7.5
Clock Rate: 1650 MHz
PCI Location: 0:130:0
Multiprocessors: 34
Threads Per Multiproc.: 1024
Warp Size: 32
Regs Per Block: 65536
Threads Per Block: 1024
Threads Dimensions: 1024 x 1024 x 64
Grid Dimensions: 2147483647 x 65535 x 65535
Watchdog Enabled: Yes
Integrated GPU: No
Concurrent Kernels: Yes
Compute Mode: Default
Stream Priorities: Yes
Memory Information
------------------
Total Global: 4096 MiB
Bus Width: 256 bits
Clock Rate: 7001 MHz
Error Correction: No
L2 Cache Size: 48 KiB
Shared Per Block: 48 KiB
Pitch: 2048 MiB
Total Constant: 64 KiB
Texture Alignment: 512 B
Texture 1D Size: 131072
Texture 2D Size: 131072 x 65536
Texture 3D Size: 16384 x 16384 x 16384
GPU Overlap: Yes
Map Host Memory: Yes
Unified Addressing: No
Async Engine: No
Performance Information
-----------------------
Memory Copy
Host Pinned to Device: 11.2115 GiB/s
Host Pageable to Device: 7230.83 MiB/s
Device to Host Pinned: 12.1357 GiB/s
Device to Host Pageable: 9951.26 MiB/s
Device to Device: 160.996 GiB/s
GPU Core Performance
Single-precision Float: 6171 Gflop/s
Double-precision Float: 216.662 Gflop/s
64-bit Integer: 1982.53 Giop/s
32-bit Integer: 8201.6 Giop/s
24-bit Integer: 7737.57 Giop/s
